SHS24200
If you are interested in our products, please leave a message to contact information, we will contact you within 24 hours

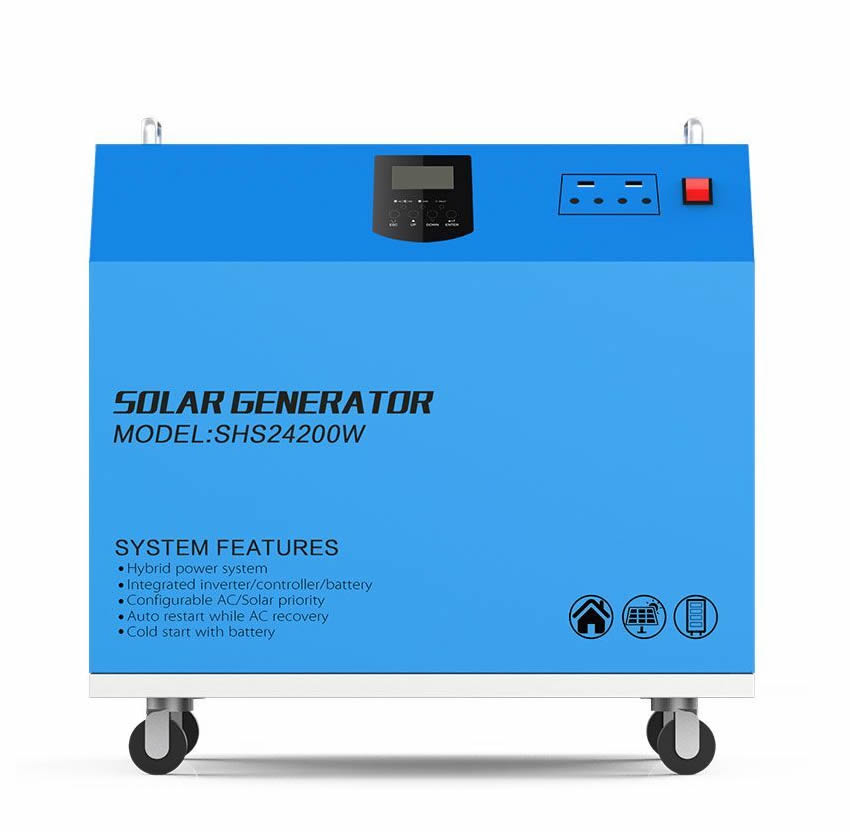

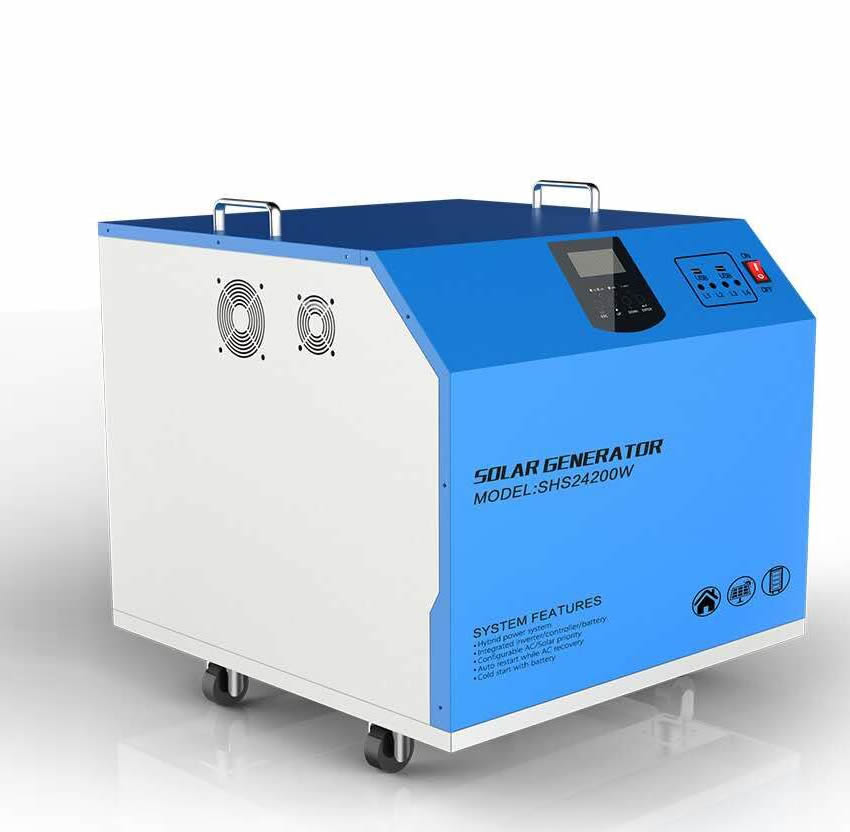

MODEL: SHS24200W

·Solar panel: 36V-300W*2pcs
·Battery: 12V-200AH*2pcs
·DC output voltage(V): 24V DC-30A
·Solar inverter: 24V DC-1500W
·AC charge current: 30A
·Output frequency : 50Hz/60Hz
·AC output voltage: 110/120/220/240V AC
·DC output voltage: DC 12V/1A*4
                   USB 5V/1A*2

System features

· Integrated chassis: 5V/12V/220V output
·Solar power independent supply
·Inverter/controller/battery/ all in one design
·High efficiency of operation
·Protable/easy installation, plug and play
·Pow/over voltage protection
·Built-in maintenance-free battery
·Stability performance, safe and reliable


Technical Specifications

NO.PictureModelDescriptionUnit Price(RMB)
     Qty. ≥ 200pcs
Unit Price(RMB)
     Qty. ≥ 500pcs
Remark
SHS series | High frequency inverter with PWM controller with battery box, modified sine wave, power factor 0.8
SHS未命名-2_r1_c1.jpgSHS-1265500W Inverter PWM 12V 20A
     4*12V1A DC Output;2*5V 1A USB
 1*AC Outlet, LCD Display
     Packing: 455*245*495mm/8kg
 Suggest:65AH-100AH Battery
 Suggest:200Wp-300Wp Solar Panel
 ¥650.00  ¥550.00







NO.PictureModelDescriptionUnit Price(RMB)
     Qty. ≥ 200pcs
Unit Price(RMB)
     Qty. ≥ 500pcs
Remark
SHS series | High frequency inverter with PWM controller with battery box, pure sine wave, power factor 0.8
SHS未命名-2_r2_c1.jpgSHS-12200800W Inverter PWM 12V 30A
     4*12V1A DC Output;2*5V 1A USB
     1*AC Outlet, LCD Display
     Packing: 710*380*750mm/25.5kg
 Suggest:150AH-200AH Battery
 Suggest:300Wp-400Wp Solar Panel
 ¥1,780.00  ¥1,580.00







NO.PictureModelDescriptionUnit Price(RMB)
     Qty. ≥ 200pcs
Unit Price(RMB)
     Qty. ≥ 500pcs
Remark
SHS series | High frequency inverter with PWM controller with battery box, pure sine wave, power factor 0.8
SHS未命名-2_r3_c1.jpgSHS-242001600W Inverter PWM 24V 50A
     4*12V1A DC Output;2*5V 1A USB
     1*AC Outlet, LCD Display
     Packing: 650*600*580mm/28kg
 Suggest:300AH-400AH Battery
 Suggest:600Wp-900Wp Solar Panel
 ¥2,450.00  ¥2,150.00







Notice: The price list validates for 3 months. All prices quoted are based on FOB Foshan. (For samples, prices are based on EXW)
